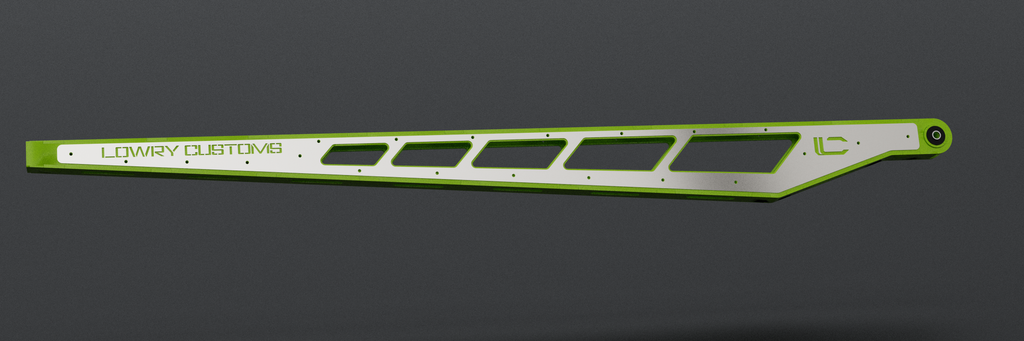

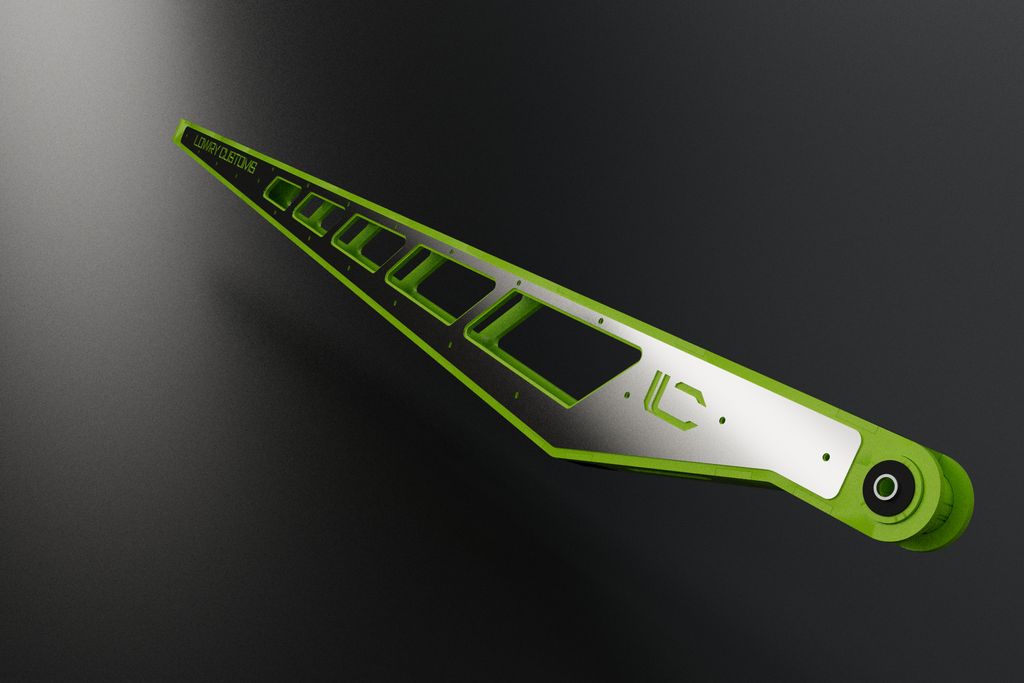

Large Drop Skeletonized Ladder Bar

Make the drop part of the design. This version of our skeletonized traction bars has a larger rear drop angle, with the same quarter-inch plate steel, fully welded construction and your choice of finish.

Features

• Larger rear drop angle than our regular Skeletonized Ladder Bar
• 1/4-inch plate steel construction, fully welded all around
• 2-5/8-inch greasable, polyurethane-lined DOM bushing at the rear
• 1-1/4-inch greasable Johnny Joint up front
• Your choice of powder coat color
• Mirror stainless overlay, or an accent-color powder-coated stainless overlay

Options

• Length: 68", 72" or 75"
• Overlay: mirrored stainless steel or powder-coated stainless steel
• Powder coat color: any color you want

Finish

All our bars come with a primer base for powder coating. Choose any powder coat color.

Brackets and fitment

Our bars bolt on with Lowry Customs traction bar brackets, available for:

• 1999-2025 Chevy/GMC 1500
• 2001-2010 Chevy/GMC 2500/3500 Duramax
• 2011-2019 Chevy/GMC 2500/3500 Duramax
• 2020+ Chevy/GMC 2500/3500 Duramax
• 2011-2016 Ford F-250/F-350
• 2017-2024 Ford F-250/F-350

Don't see your truck? See Other Not Listed Traction Bar Brackets. Select your bracket fitment and powder coat color at checkout.

Built in Ohio

Built to order by Lowry Customs in Ohio. Typical lead time is 4-6 weeks. Production times are estimates, not guarantees; see our Shipping Policy.

Warranty

Covered by our Limited Lifetime Warranty. Wear items such as joints, bushings, hardware and powder coat are not covered. See the warranty details.
